Do not remove an electrical panel cover, touch exposed conductors, bypass protection, or repeatedly reset a fault. Keep clear of smoke, sparks, burning odors, hot equipment, standing water near electricity, and downed lines, then call qualified help.
You may first notice the problem during an ordinary evening. The air conditioner starts, the kitchen lights dim, and a breaker trips while the oven and dishwasher are running. You reset it, but the breaker trips again the next day under a different load. That pattern does not automatically mean the electrical panel must be replaced, but it does mean the system should be inspected.
The panel receives incoming power and distributes it through breakers to the home's circuits. A failing breaker, loose connection, damaged conductor, or overheated internal component can create symptoms throughout the house.
Reduce the load on the affected circuit and leave a repeatedly tripping breaker off. Do not remove the panel cover. If you smell burning, see smoke, hear sharp crackling, or feel significant heat on the closed door, stay away and contact a licensed electrician promptly.
Seven Signs Your Electrical Panel Needs an Inspection in Latitude Margaritaville Watersound
1. Breakers Trip More Than Once
A breaker interrupts power when current becomes unsafe. One trip may result from too many appliances operating together. Repeated trips can indicate an overloaded circuit, damaged wiring, short circuit, ground fault, defective appliance, or weak breaker.
Before resetting a breaker once, turn off or unplug portable devices on that circuit. If it trips again, leave it off.
2. Lights Flicker or Change Brightness in Multiple Rooms
One flickering lamp may have a loose bulb. Flickering across several rooms can point to a loose panel connection, damaged neutral conductor, overloaded system, or service-voltage problem.
The neutral helps stabilize voltage. If it becomes loose, some lights may brighten while others dim, electronics may restart, and appliances can receive damaging voltage. Widespread flickering should not be treated as a bulb problem alone.
3. The Panel Buzzes, Crackles, or Pops
A functioning panel should be nearly silent. Persistent buzzing, crackling, snapping, or popping can come from a loose terminal, failing breaker, poor contact with the internal bus bar, or electrical arcing.
The bus bar is the metal component that supplies the breakers. Arcing occurs when electricity jumps across a gap instead of flowing through a secure connection, producing intense heat. Do not open the panel to locate the sound.
4. The Cover or a Breaker Area Feels Hot
Electrical equipment can become slightly warm while carrying current, but the panel cover should not feel hot. A concentrated hot spot may indicate a loose connection, overloaded conductor, deteriorated breaker, or damaged internal contact.
You may also notice discoloration or a hot-plastic smell. Stop using heavy loads if it is safe and arrange an inspection.
5. You See Rust, Water Stains, or Corrosion
An electrical panel must remain dry. Rust, staining above the cabinet, residue on metal, or moisture around conduit openings can affect reliability and safety.
Moisture corrodes terminals and can increase electrical resistance, which creates additional heat. The panel may appear dry even though hidden corrosion remains. Do not spray cleaner or rust remover inside. Both the moisture source and electrical damage need attention.
6. There Is a Burning Smell, Scorching, or Melted Material
A hot-plastic odor, dark marks around a breaker, melted insulation, or discolored metal indicates overheating. Possible causes include a loose terminal, overloaded wire, breaker failure, incompatible component, or damaged bus bar.
Treat this as urgent even if the odor fades. If there is active smoke or fire, leave the home and call emergency services.
7. The Panel Is Full or Cannot Support New Demand
A panel may need inspection even without visible damage. HVAC changes, electric cooking, water heating, workshop tools, outdoor equipment, or an EV charger can increase demand.
No open spaces, confusing labels, questionable additions, or frequent use of shared circuits should be evaluated before adding more equipment. A licensed electrician can perform a load calculation, which estimates the home's electrical demand.
The solution may be a dedicated circuit, subpanel, panel replacement, or service upgrade. Additional breaker spaces alone do not increase the power available to the home.
Safe Checks You Can Perform
Keep the panel closed. Note which breaker trips, what was running, whether the issue affects one circuit or several rooms, and whether a new appliance or renovation preceded the problem.
Look from a safe distance for rust, stains, discoloration, missing filler plates, or blocked access. Unplug portable devices from the affected circuit, but do not continue testing a breaker that trips repeatedly.
What a Homeowner Should Not Attempt
Do not remove the inner cover, probe inside with a meter, tighten terminals, move conductors, or touch service wires. Parts of the panel may remain energized even when the main breaker is off.
Never install a higher-amperage breaker to stop tripping. Breakers protect the wiring, and an oversized breaker can allow a conductor to overheat. Do not tape a breaker on, force incompatible parts into the panel, or attempt to dry wet equipment.
Signs That Make the Problem Urgent
Call promptly for smoke, sparks, visible arcing, melted material, a burning odor, a hot cabinet, water inside, repeated main-breaker trips, shocks, or severe brightening and dimming of lights.
A partial outage affecting large sections of the home may indicate a service connection problem. Stay away from damaged utility equipment and downed lines.
How a Licensed Electrician Diagnoses the Panel
The electrician reviews the symptom history and checks the panel rating, breaker compatibility, conductor sizes, loading, grounding, moisture, corrosion, heat damage, and previous modifications.

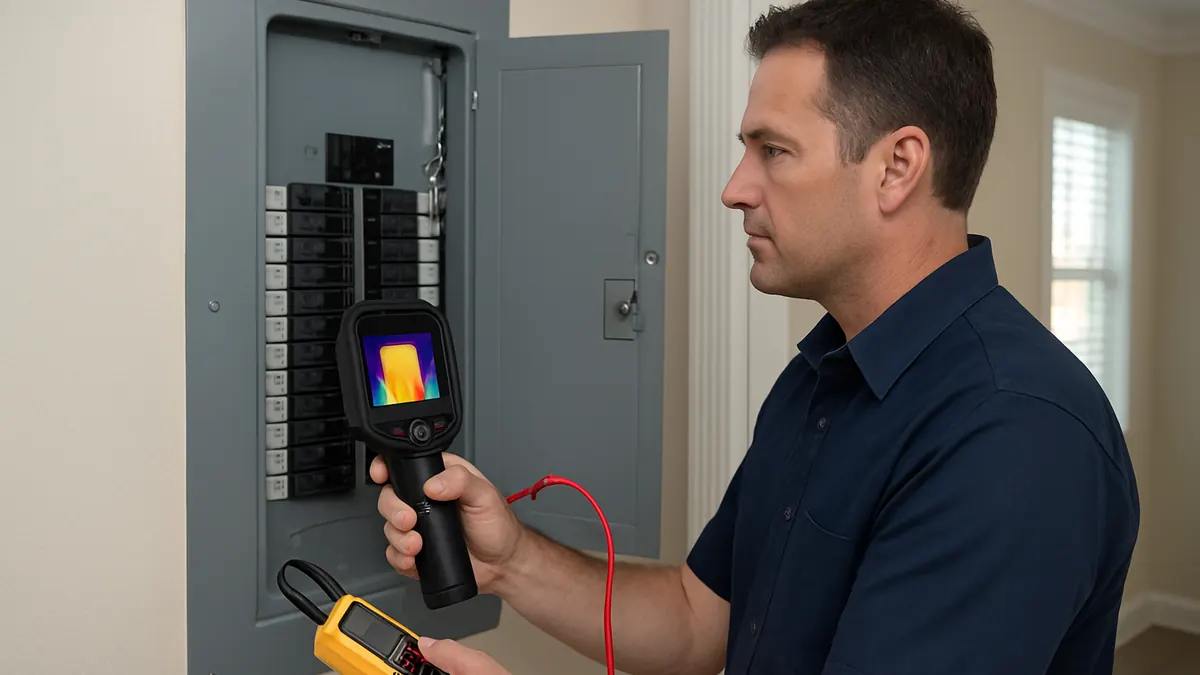

Testing may include voltage and current measurements or thermal imaging to identify abnormal heat. Appliances, branch circuits, service equipment, and utility-side conditions may also be checked so the actual source is identified.
Repair Options, Starting With the Least Invasive
A focused repair may involve replacing one approved breaker, correcting a branch-circuit connection, repairing a loose terminal when the equipment remains serviceable, or installing a dedicated circuit for a high-demand appliance.
More extensive work may include replacing damaged conductors, correcting grounding, adding a properly designed subpanel, or stopping moisture entry.
Panel replacement may be appropriate when there is widespread corrosion, damaged bus bars, severe overheating, unavailable compatible components, or unsafe alterations. A service upgrade is considered when calculated demand exceeds existing capacity.
Typical Factors That Affect Cost
Cost depends on the defect, panel type, breaker availability, accessibility, number of affected circuits, service size, damage, grounding work, permits, and whether walls or finishes must be opened.
A clear estimate should identify the confirmed problem, the least invasive safe option, and why broader work is recommended when necessary.
Prevention and Maintenance Guidance
Keep the panel dry, accessible, and accurately labeled. Have electrical additions performed by qualified professionals and schedule an inspection before installing major new equipment.
Pay attention to new heat, odors, sounds, flickering, or breaker trips after remodeling or appliance changes. Surge protection can help with certain voltage spikes, but it cannot correct loose connections, overloads, corrosion, or defective breakers.
Homeowner FAQs
Does repeated tripping always mean the panel is bad?
No. The cause may be an overloaded circuit, faulty appliance, damaged wire, loose connection, or defective breaker.
Is it normal for lights to dim when the air conditioner starts?
A brief minor dip may occur. Pronounced, repeated, or worsening dimming can indicate voltage drop, loose connections, or capacity concerns.
Can a full panel still be safe?
Possibly, but an electrician must evaluate the breaker arrangement, equipment condition, and available service capacity before anything is added.
Can I clean rust from the electrical panel?
Do not clean inside electrical equipment. A licensed electrician should determine whether affected components can be replaced or whether corrosion is more extensive.
Does a subpanel give my home more power?
No. It adds circuit spaces and distribution options but does not increase the capacity of the incoming service.
Take the Next Appropriate Step
Seven signs your electrical panel needs an inspection in Latitude Margaritaville Watersound include repeated trips, widespread flickering, abnormal sounds, excessive heat, moisture damage, burning evidence, and inadequate space or capacity. Some conditions require a focused repair, while others justify panel or service work. The correct decision begins with a licensed diagnosis rather than repeated resets or guesswork.
About this guide: This resource provides general homeowner education, not a remote diagnosis. Actual conditions, code requirements, equipment, and safe repair options must be evaluated at the property.
